MiraCube V1.0
by f3rdys, published
.jpg)
Description
- 05/11/2014 Finally added a BOM.cvs
- 09/10/2014 Added a new version. V1.5 With some important modification.
I positioned the Z-axis motor outside the structure, the only 3d piece
changed is the 17_Z_Screw_Driver.stl, it must be replaced by the 40_Z_Screw_DriverV1.5.stl
You can see a new project on tinkercad her:
https://www.tinkercad.com/things/bhpW4FNh38z-miracube-with-1-hotend-v15
- 09/10/2014 Added entire set of x carriage for 1 hot end only
- 37_x-carriage_1_hot_end.stl
- 38_X_car_Belt_1_hotend.stl
- 39_X_car_fan_1_hotend.stl
In this case you can print only 1 exstrusion set.
- 05/09/2014 Added a 40mm fan duct for PLA printing
- 36_x_carriage_fan_duct.stl

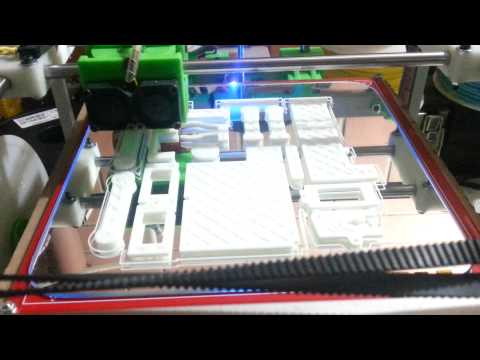

A video of the Miracube in action can be viewed here:
https://www.youtube.com/watch?v=X2z2qGbcNx4&feature=youtu.be

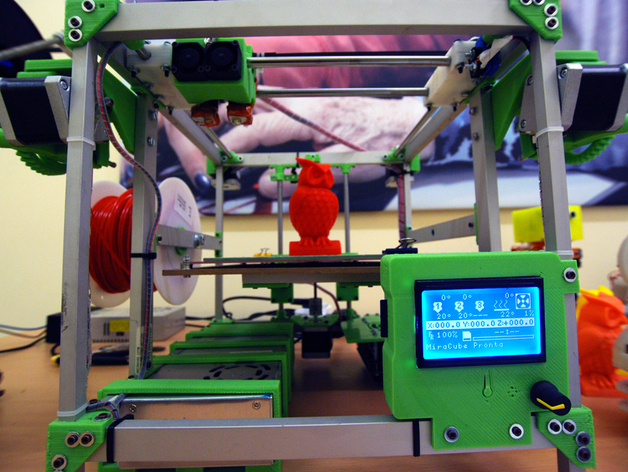

A Corexy 3D printer.
This thing was made with Tinkercad. Edit it online
https://www.tinkercad.com/things/f7uonb7lb4N-miracube-v10
From the above tinkercad link you can build simply the MiraCube. In the 3d tinkercad project you can compute all the measure of aluminium extrusion profile.
I used two type of brico aluminium extrusion profile
- 36_x_carriage_fan_duct.stl
- 10mmx10mm
- 20mmx10mm
Yuo can rescale the entire printer on axis Y and Z. For the resacaling on the axe X You must reengineer the heatbed support mount.
In the tinkercad link below you can see a rescaled MiraCube with a volume of 20x40x30
https://www.tinkercad.com/things/fpE4DgV8KrO-miracube-20x40x30
For the X Y and Z sliders I used 8mm smooth rods (you can get the lenght from thinkercad project) and a LM8UU linear bearing.
For the kinematic motion I used 4mm inner hole ball bearing and a GT2 belt.
If you like the printer can write a comment or leave a feedback.
Thank you.
Una satmpante con cinematica Core XY
Questa stampante è stata creata a partire dal progetto pubblico che puoi trovare su Tinkercad al link:
https://www.tinkercad.com/things/f7uonb7lb4N-miracube-v10
A partire dal progetto Tinkercad puoi costruire la Miracube con estrama facilità . Nel progetto puoi calcolare e ricavare ogni singola misura di ciascun pezzo in alluminio.
Per la stampante in foto ho utilizzato due tipi di estrusi in alluminio facilmenti reperibili in un qualsiasi negozio brico (Leroy & Marlin, Brico, Obi, etc.): - barre da 10mm x 10mm
- barre da 20mm x 10mm
Inoltre, sempre dal progetto Tinkercad puoi scalare l'intera struttura della stampante sia sull'asse Y che su quello Z. Per l'asse X andrebbe reingegnerizzato il supporto per il piatto riscaldato.
Nel link di seguito puoi trovare già un progetto scalato con dimensioni di stampa 20x40x30
https://www.tinkercad.com/things/fpE4DgV8KrO-miracube-20x40x30
Per gli slider X, Y e Z ho utilizzato delle barre rettificate da 8mm e dei cuscinetti lineari del tipo LM8UU. Anche in questo caso puoi ricavare la lunghezza delle barre dal progetto Tinkercad.
Come cuscinetti a sfera per la Cinematica XY ho utilizzato dei cuscinetti con foro interno da 4mm ed una cinghia dentata GT2.
Se ti piace la stampante scrivi un commento o lascia un feedback.
Grazie
.
Soon I will enclose a BOM and a guide with the construction steps
.
.
The GLCD cover design is a little mod of wersy's one:
http://www.thingiverse.com/thing:87250
The LCD is available at RepRapDiscount:
http://reprap.org/wiki/RepRapDiscount_Full_Graphic_Smart_Controller
and it work with Marlin firmware and probably with other ones.
The Extruder is a remake of Greg`s Wade Universal Reloaded Edition !
http://www.thingiverse.com/thing:18619
The Bowden Bracket is derived from
http://www.thingiverse.com/thing:126183
The 12V DC power supply cover is derived from
http://www.thingiverse.com/thing:74562
Makes
Remixed From
Tags
License
Give a Shout Out
Instructions
Soon I will enclose a BOM and a guide with the construction steps
Below the number of stl to print:
01_Up_Corner.stl x2
02_Left_Motor_Corner.stl x1
03_Right_Motor_Corner.stl x1
04_Down_Corner.stl x4
05_reinf_supp.stl x6
06_supp_rod.stl x4
07_Y_slider.stl x4
08_X_carriage.stl x1
09_X_car_fan.stl x1
10_X_car_Belt.stl x1
11_Z_Up_Supp_Rod.stl x1
12_Z_DW_supp_road_and_mot.stl x1
13_Z_Slide_A.stl x2
14_Z_Slide_B.stl x2
15_Z_bed_Supp_A.stl x1
16_Z_bed_Supp_B.stl x1
17_Z_Screw_Driver.stl x1
18_Z_Screw_Bearing.stl x1
19_Bed_Corner.stl x4
20_Endstop_Z_holder.stl x1
21_Endstop_Z_adj.stl x1
22_Endstop_Y_holder.stl x1
23_Extr_support_sx.stl x1
24_Extr_support_dx.stl x1
25_Extr_sx.stl x1
26_Extr_dx.stl x1
27_Extr_Idle_sx.stl x1
28_Extr_Idle_dx.stl x1
29_Extr_B_Gear.stl x2
30_Extr_S_Gear.stl x2
31_RAMPS_Fan_cover.stl x1
32_DC_Power_supp.stl x4
33_DC_Power_cover.stl x1
34_glcd_case_back.stl x1
35_glcd_case_front.stl x1
New add
36_x_carriage_fan_duct.stl x1
37_x-carriage_1_hot_end.stl x1
38_X_car_Belt_1_hotend.stl x1
39_X_car_fan_1_hotend.stl x1
V1.5
40_Z_Screw_DriverV1.5.stl x1 (instead 17_Z_Screw_Driver.stl)
